Product details

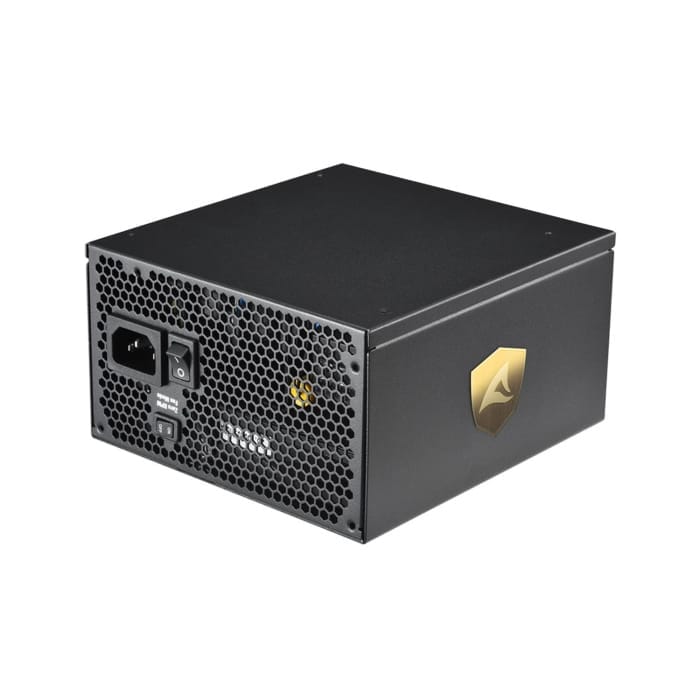

| Model No | Sharkoon Rebal P30 80PLUS Gold 850 Watt Power Supply |
| Part No | P30 850W |
| Power | 850Watt |
| Efficiency Standard | 80PLUS Gold |
| Modularity | Fully Modular |
| Color | Black |
| PSU Form Factor | ATX 3.0 |
| Lighting | Non-RGB |
| Fan Size | 135 mm |
| Protection Features | OCP (Over-Current Protection): ✓ OVP (Over-Voltage Protection): ✓ UVP (Under-Voltage Protection): ✓ SCP (Short-Circuit Protection): ✓ OTP (Over-Temperature Protection): ✓ OPP (Over-Power Protection): ✓ |
| AC Input Range | 100 – 240 VAC |

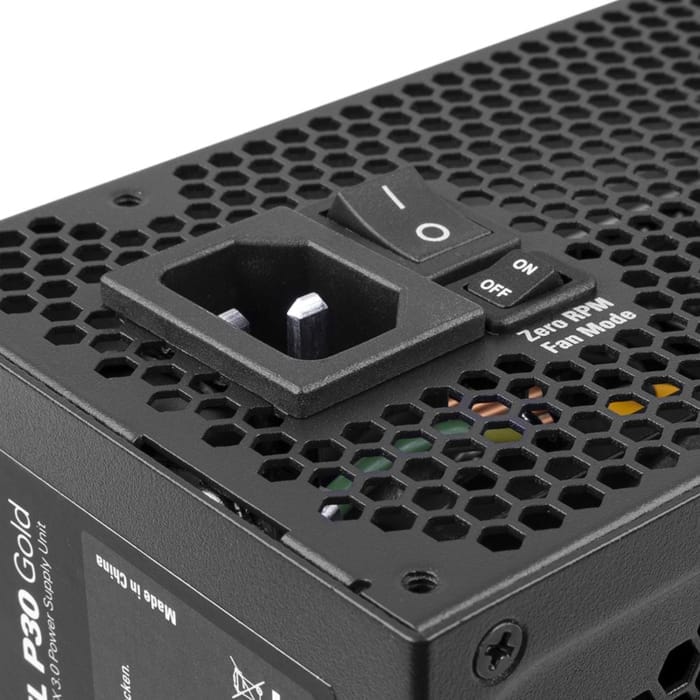

| Special Features | Designed for performance, the Rebel P30 Gold is a power supply unit that is fully modular and certified with 80 PLUS Gold. With the new ATX 3.0 standard and a PCIe Gen5 12VHPWR connection, it offers full compatibility for high-end graphics cards. In addition, the PSU is supplied with LLC resonant-converter and DC/DC technology and is equipped only with high-quality Japanese capacitors. A quiet 135 mm fan with an intelligent Zero RPM mode provides the cooling as well as a low-noise operation. |

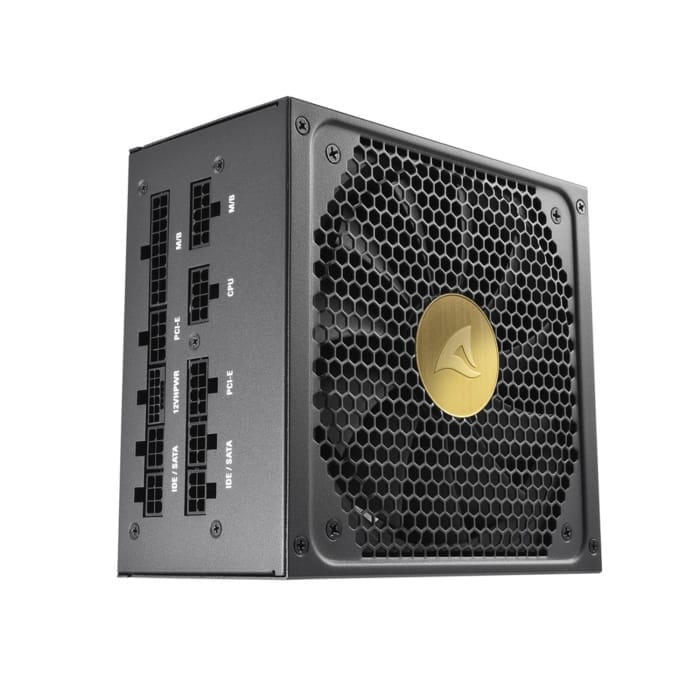

| Connectors | Cable Configuration: Fully Modular Flat Cables: ✓ Maximum Cable Length: 100 cm Length of Mainboard Cable: 62 cm Length of CPU Cable: 73 cm Length of 12VHPWR Cable: 62 cm Length of PCIe Cable: 55 cm + 15 cm Cable Length to First Peripheral: 55 cm 20+4-Pin Mainboard Connector: 1 4+4-Pin CPU Connector: 1 8-Pin CPU Connector: 1 6+2-Pin PCIe Connector: 4 12VHPWR Connector: 1 SATA Connector: 12 IDE Connector: 2 (via Adapter) Floppy Connector: 1 (via Adapter) |

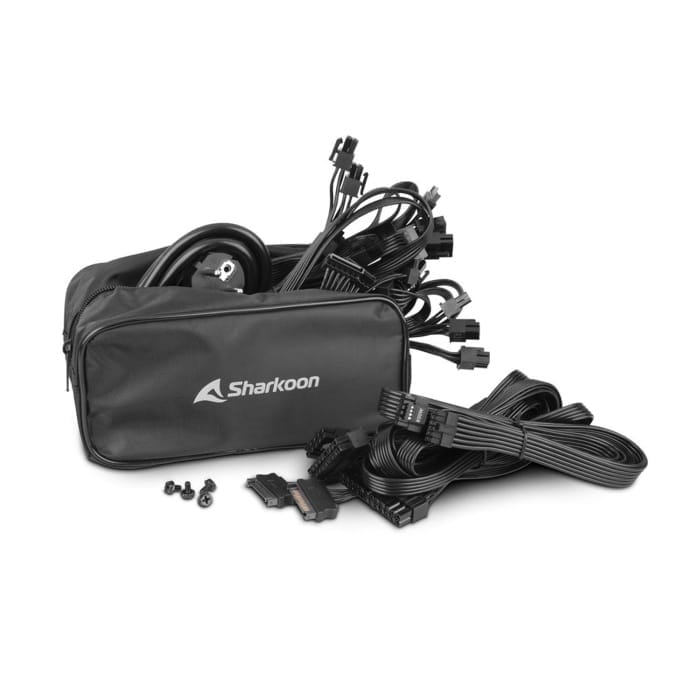

| Package Contents | Power Cord Set of Modular Cables Cable Bag Mounting Screws |
| Dimension | 150 x 160 x 86 mm |
| Weight | 1.7 kg |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
