Product details

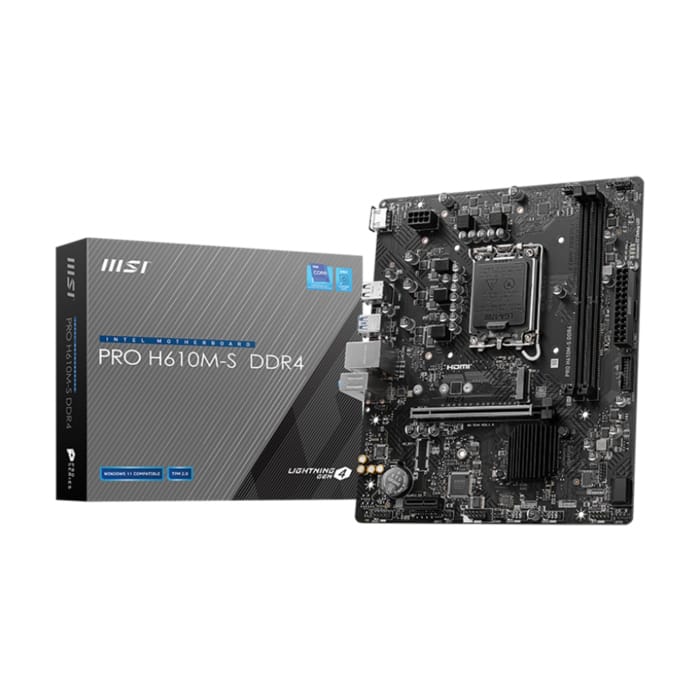

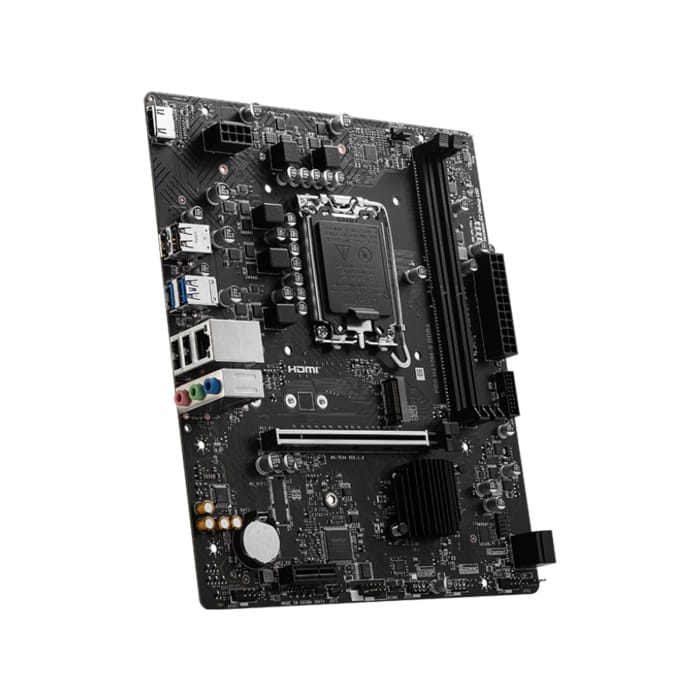

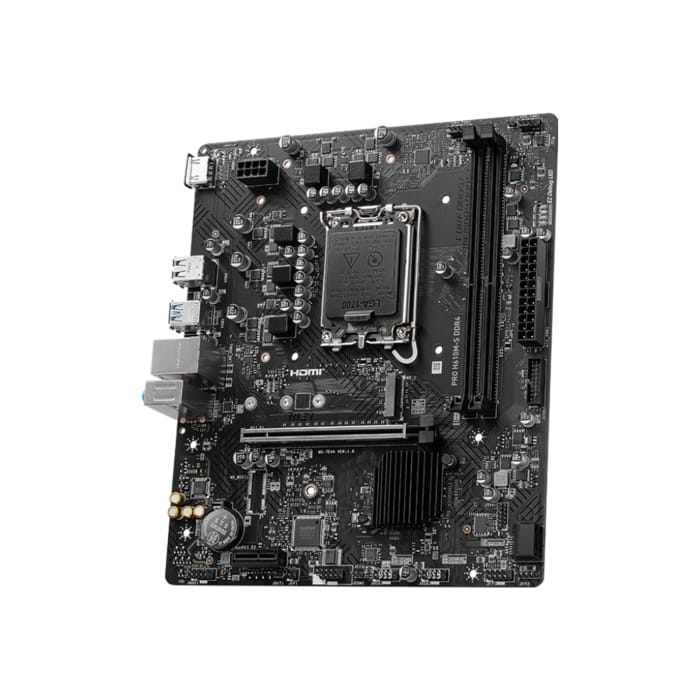

| Model No | MSI PRO H610M-S DDR4 mATX Motherboard |
| Part No | 911-7E44-013 |
| Chipset | Intel® H610 Chipset |
| Form Factor | mATX 200mmx236.16mm |
| Socket Compatibility | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Memroy | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Storage Compatibility | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |

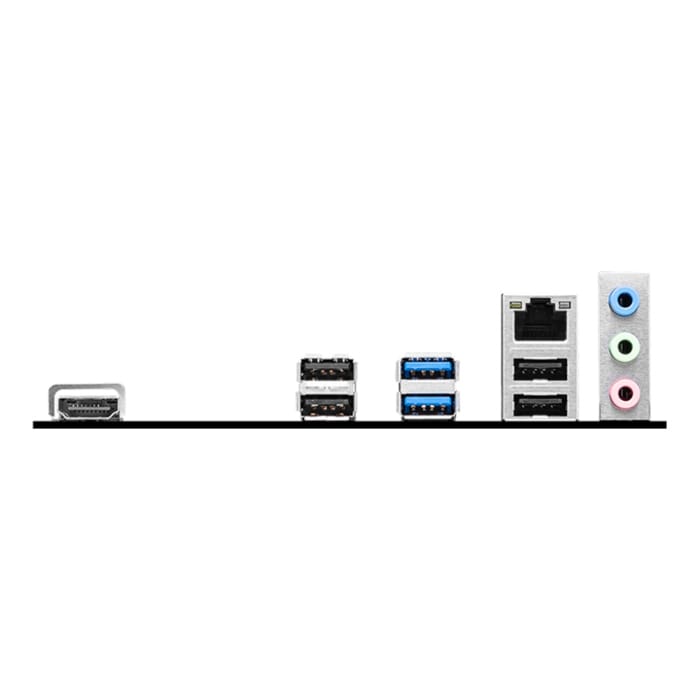

| Back Panel I/O Ports | HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 LAN port Audio Connectors USB 2.0 |
| Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
| LED Features | 4x EZ Debug LED |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
