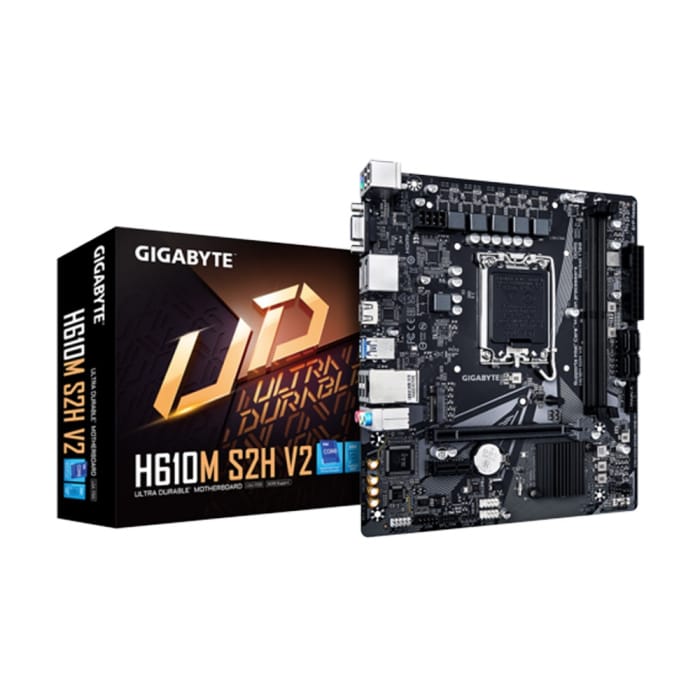

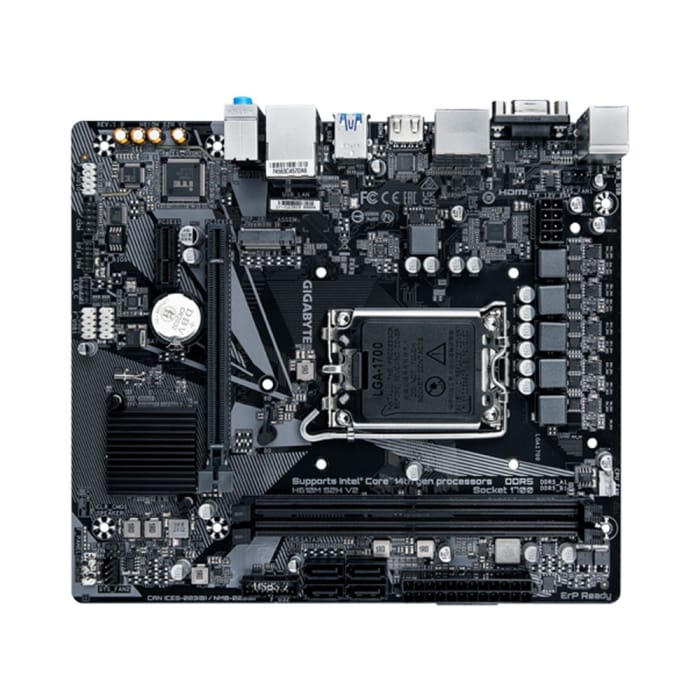

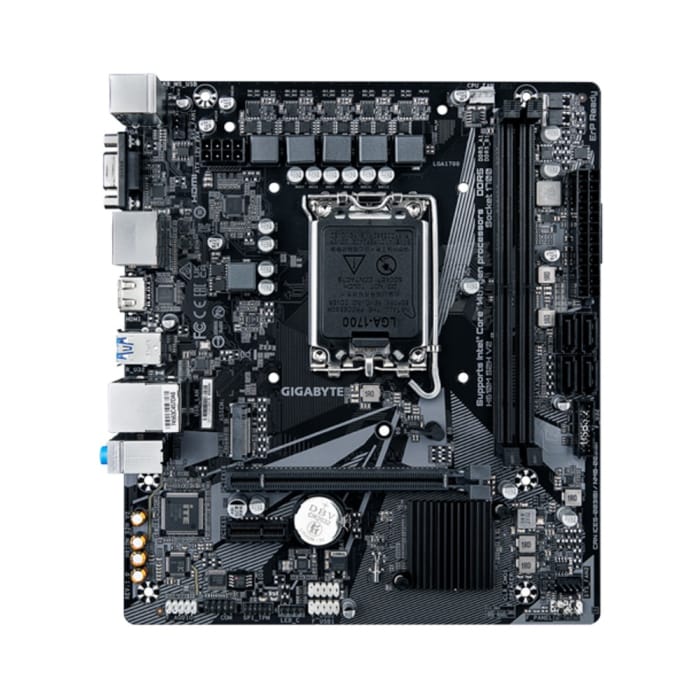

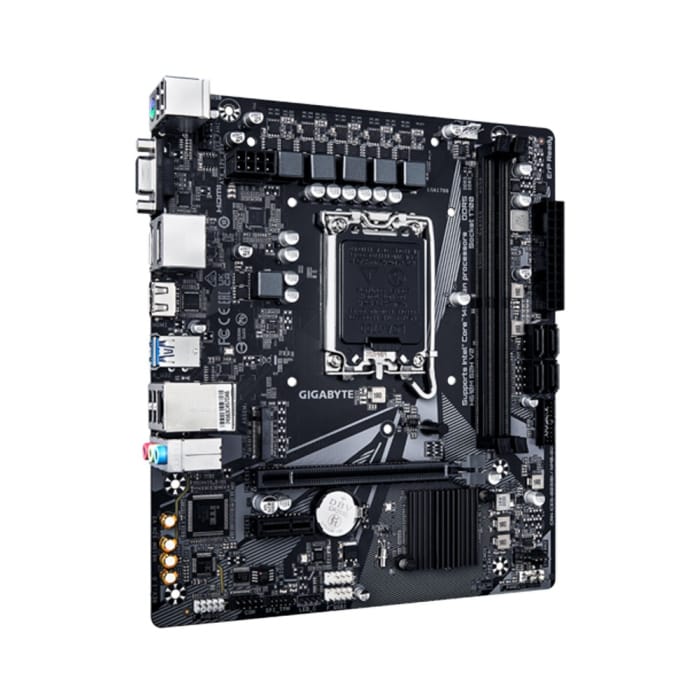

GigaByte Intel H610M S2H V2 DDR5 MotherBoard

In stock

$ 94.98

Key Features

  • Item ID : NS016250
  • Brand : Gigabyte
  • Motherboard Series : H Series
  • Socket Type : LGA 1700
  • Form Factor : Micro ATX
  • Memory Type : DDR 5
  • Wi-Fi : No

سياسة التوصيل للطلبات عند الدفع عبر تابي

  • نقوم بتوصيل المنتج خلال 3 إلى 7 أيام
  • في حال عدم توفر المنتج، سنقوم برد المبلغ إلى حسابك
  • في حال عدم توفر المنتج بعد إتمام عملية الطلب، يتم إلغاء الأقساط من حساب العميل وإعادة المبلغ المدفوع إليه. عادة ما يستغرق الأمر من 2 إلى 5 أيام عمل حتى ينعكس المبلغ في حسابه البنكي
Buy now
SKU: NS016250

Product details

Model NoGigaByte Intel H610M S2H V2 DDR5 MotherBoard
Part NoH610M S2H V2 DDR5
ChipsetIntel® H610 Express Chipset
Form FactorMicro ATX
Socket CompatibilityLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
LANRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Memroy14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
– Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
– Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hzjk
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.- 2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hzj
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same timej

Storage CompatibilityChipset:
– 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
– 4 x SATA 6Gb/s connectors

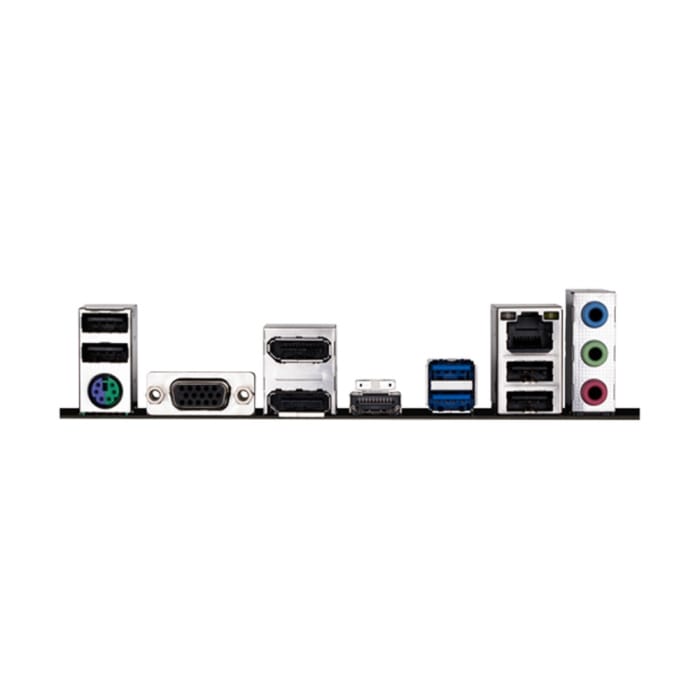

Back Panel I/O Ports1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB Ports Front (Support )Chipset:
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Expansion SlotsCPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
AudioRealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
Special FeaturesSupports Intel® Core™ 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Product Size ( Dimension )22.3cm x 19.6cm
Warranty1 Year ( As per Manufacturer Policy )
