Product details
| Model No | ROG STRIX X870-I GAMING WIFI |
| Part No | 90MB1IW0-M0EAY0 |
| Chipset | AMD X870 |
| Form Factor | Mini-ITX Form Factor |
| Socket Compatibility | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth® v5.4*** |
| LAN | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Memroy Type | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*” Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Onboard Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Storage Compatibility | Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* AMD Ryzen™ 8000 Series Desktop Processors* AMD X870 Chipset |

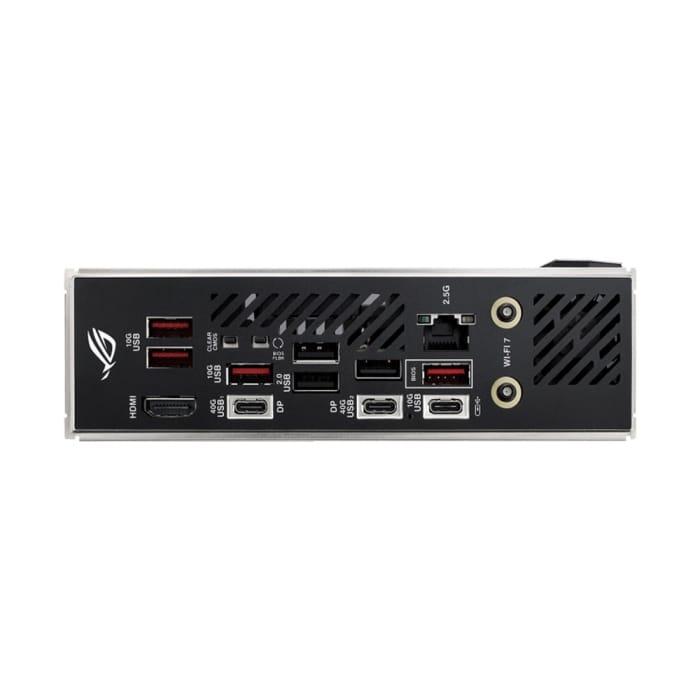

| Back Panel I/O Ports | 2 x USB4® (40Gbps)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II) 3 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| USB Ports Front (Support ) | Rear USB (Total 10 ports) 2 x USB4® (40Gbps) port(s)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 3 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports * USB Type-C® power delivery output: max. 5V/3A ROG STRIX HIVE II(Total 2 ports) 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) ROG FPS Card (Total 3 ports) 2 x USB 2.0 headers additional 3 USB 2.0 ports |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slotAMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* |
| Audio | ROG Strix Hive II Audio Features – ROG Hyper-Grounding Technology – ESS® SABRE9260Q DAC – Silver-plated audio jacks – Dedicated audio PCB layers |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header support(s) 2 additional USB 5Gbps ports Miscellaneous 2 x Addressable Gen 2 headers 1 x 2-pin Power Button header 1 x Thermal Sensor header 2 x USB Type-C® connectors to install ROG FPS card ROG FPS card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Front Panel header 1 x Alteration PCIe Mode switch 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Special Features | ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – Aluminum backplate ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 header(s) ROG STRIX HIVE II 1 x USB Type-C® connects to motherboard 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) 1 x Headphone jack with mic in 1 x Power button 1 x FlexKey button 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Product Size ( Dimension ) | 6.7 inch x 6.7 inch (17 cm x 17 cm) |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
