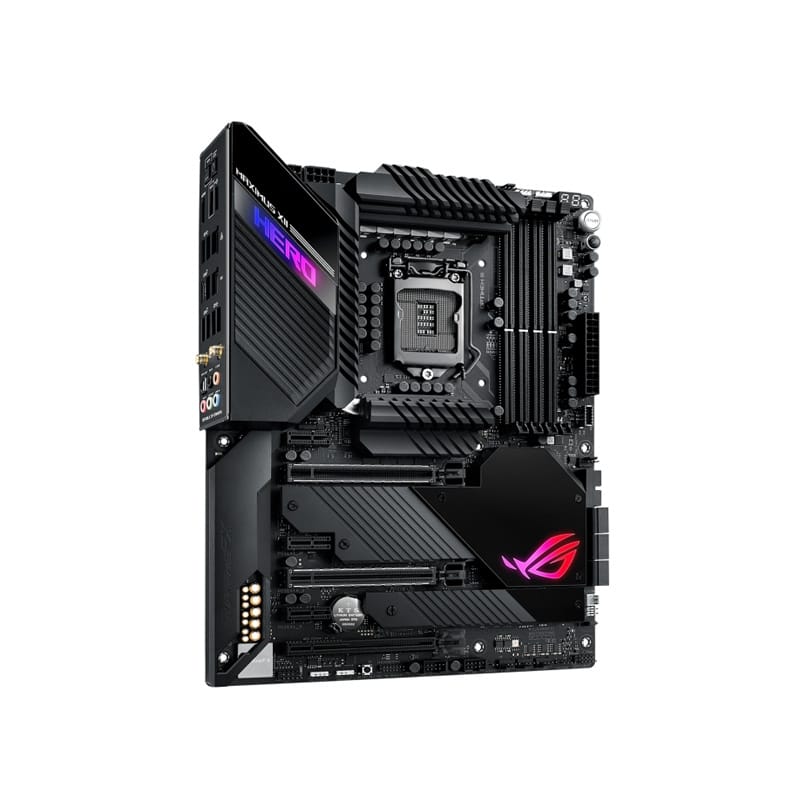

ROG MAXIMUS XII HERO (WI-FI)

ROG Maximus XII Hero is the perfect foundation to the Republic of Gamers. It’s a motherboard that packs substantial power, smart cooling and faster memory support under a stealthy skin. Loaded with renowned ROG features, from AI overclocking and AI cooling to attention-grabbing Aura Sync illumination, Maximus XII Hero is ready to perform and crafted for customization.

PERFORMANCE

The Intel Comet Lake processor features 10 cores and a peak single-core Turbo speed that exceeds 5.3 GHz right out of the box. To cope with this increased demand on the system, Maximus XII Hero takes advantage of its intelligent VRM design and uses quality components to ensure the best gaming and daily productive computing experience.

• Teamed Power Architecture
  Today’s CPU architectures place incredible demands on motherboard power design by transitioning from deep power saving modes , going from lower-power mode to full load in an instant. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
• Thermal performance
  Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. That’s why ROG Maximus XII Hero utilizes 16 power stages. The power stage sits at the top of Infineon’s lineup and features a low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
• 8-pin ProCool II power connector
  ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
• 14+2 power stage
  The VRM has 14+2 power stages, each rated to handle 60 amps.
• MicroFine alloy chokes
  Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
• 10K Japanese-made black metallic capacitors
  Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
• ASUS Optimem III
  Boasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high frequency settings, or low latency settings. With higher capacity memory kits, OptiMem III enables you to run at maximum frequency, whereas other motherboards will trade off frequency for capacity. Stack Maximus XII Hero with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.

PLAY IN STYLE

Maintaining system stability is paramount under high load, so Maximus XII Hero employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large armor heatsinks also cover multiple M.2 slots. Featuring premium components and multiple fan headers, Maximus XII Hero is fully armed to provide the best foundation for gaming systems – enabling higher performance at lower temperatures.

• VRM heatsink
  A VRM heatsink is placed on the MOSFETs and chokes, and the embedded heatpipe connects to the aluminum I/O cover.
• Large diameter heatpipe
  The U-shaped design provides rapid and even heat transfer from the VRM to the extended VRM heatsink.
• M.2 heatsink
  A dedicated heatsink keeps the triple M.2 SSDs at the optimum operating temperature for consistent performance and reliability.
• High-conductivity thermal pad
  The high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
• Extended VRM heatsink
  The extended heatsink at the end of heatpipe increases thermal mass to offset the additional heat generated by high power consumption.
• Chipset heatsink
  A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
• ROG Water-Cooling Zone
  Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
• Grow your gaming world
  Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
• Addressable Gen 2 RGB header
  The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Connectivity

ROG Maximus XII Hero offers advanced connectivity, including WiFi 6 (AX201) and dual Ethernet with intel^® 1Gb and Marvell^® 5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports Intel^® Optane^TM Memory technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.

• WiFi 6 (AX201)
  Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences.
• Marvell® 5Gbps Ethernet
  With up to 5X the bandwidth of standard gigabit Ethernet, you’ll enjoy streaming uncompressed 4K UHD videos, backups and file transfers that are faster than ever before. Hero supports intermediate 2.5Gbps connectivity, allowing you to step up to faster networks for maximum flexibility. Choose the bandwidth that meets your needs and enjoy ultra-low latency at any speed.**
• Intel® 1Gbps Ethernet
  ROG Maximus XI Hero features Intel® Gigabit Ethernet for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there’s more power for games and other tasks.
• Storage
  Maximus XI Hero comes equipped with three M.2 slots to let you take full advantage of Intel IRST and NVMe RAID for ultimate SSD storage speeds. The drives can be found under the aluminum heatsink covers. Integrated PCIe support ensures compatibility with the latest NVMe SSDs to enable ultrafast transfer speeds.
• SupremeFX
  ROG SupremeFX audio technology has levelled up, delivering an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op amp for high gain with low distortion — all to deliver audio that envelops you as never before.
• Sonic Studio III
  Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
