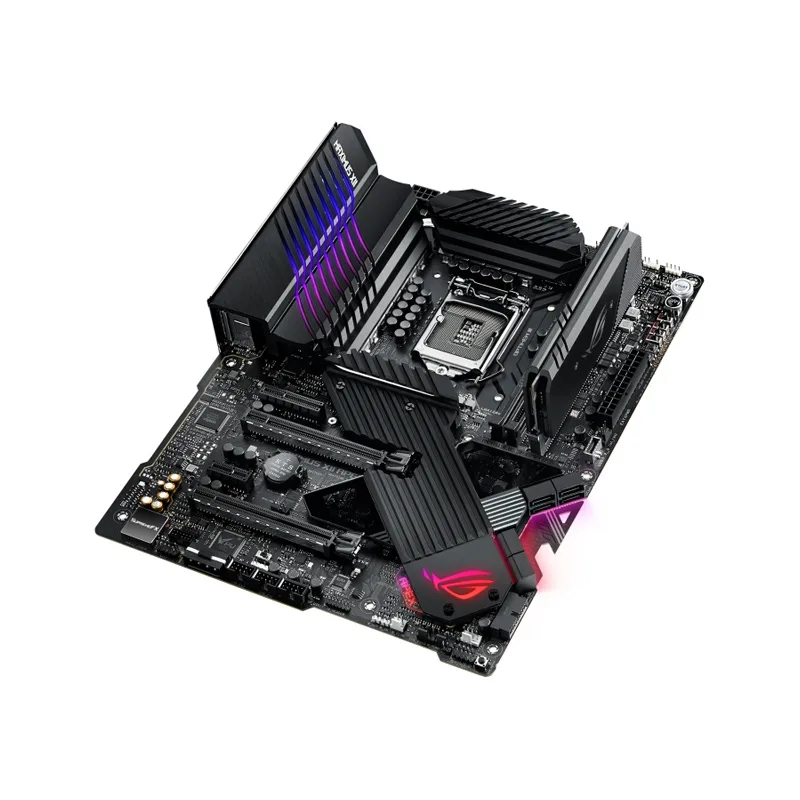

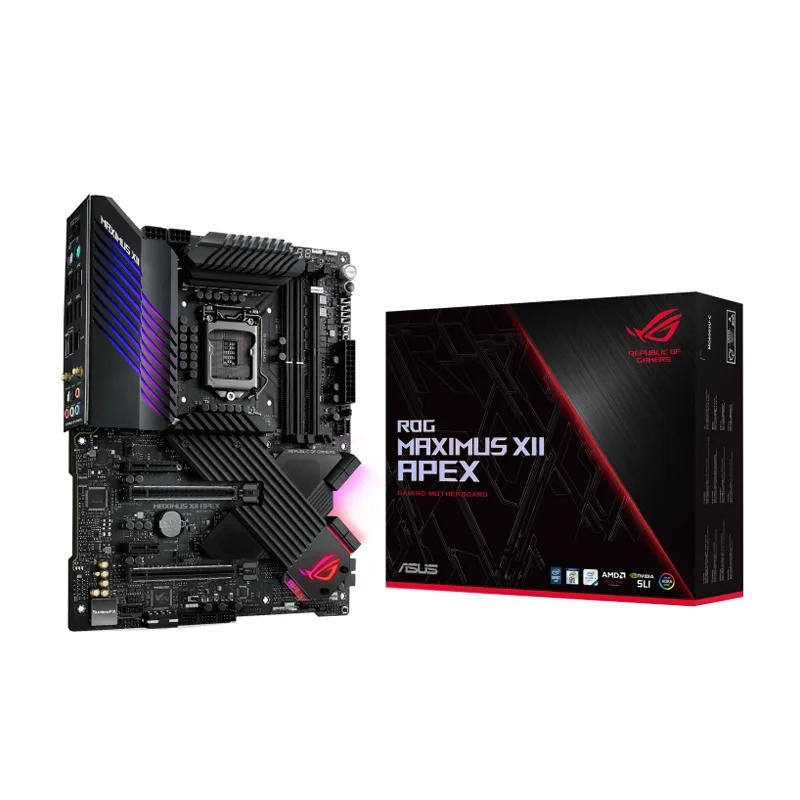

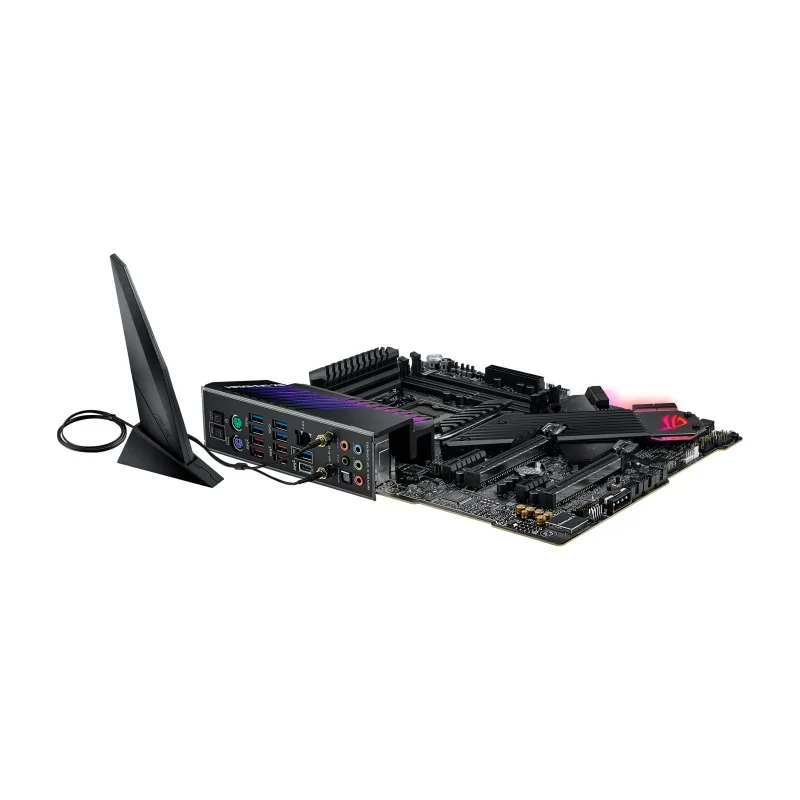

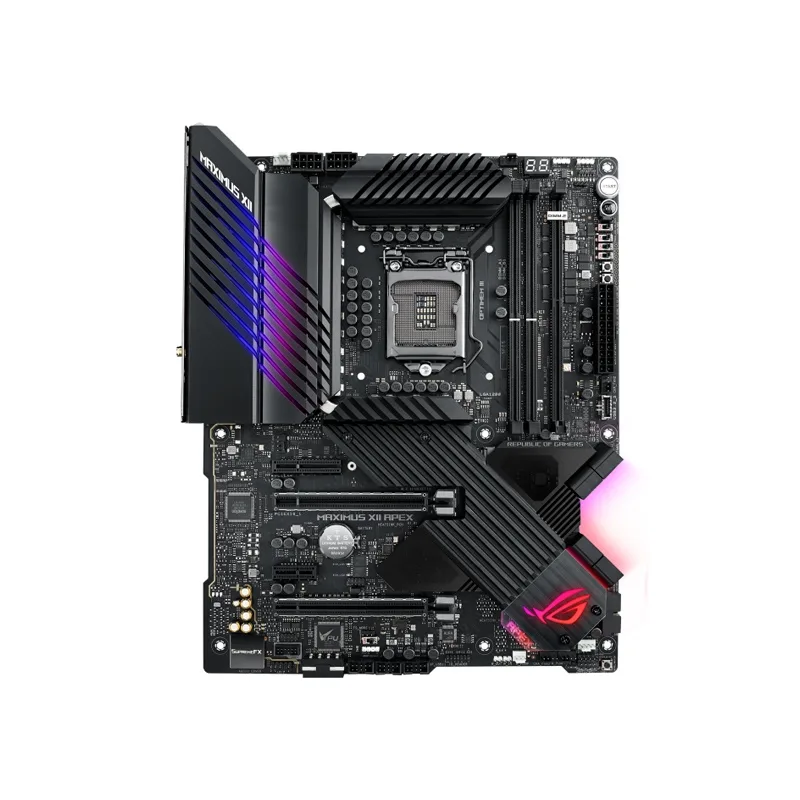

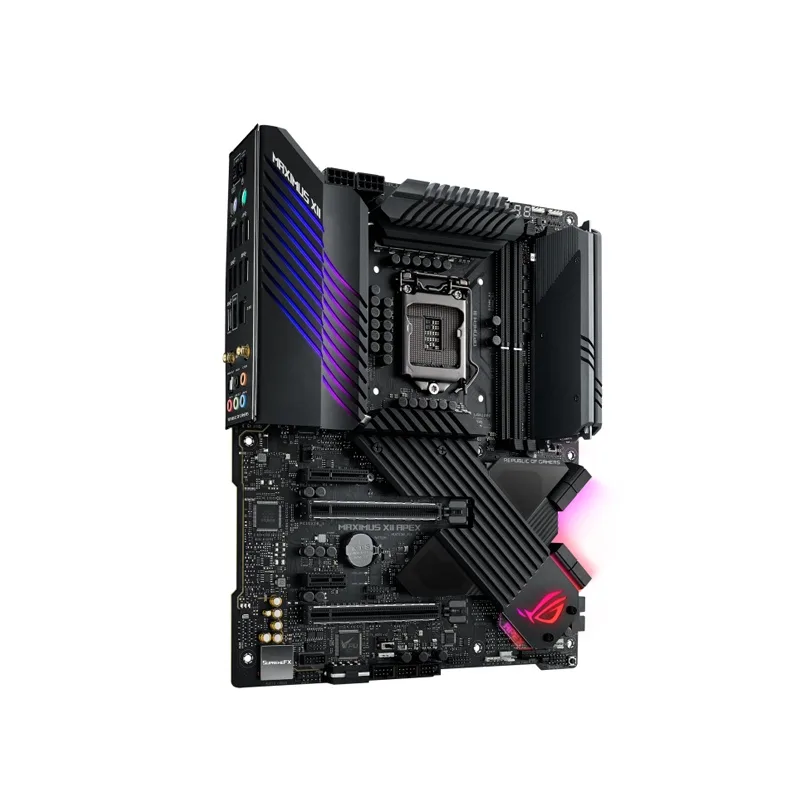

ROG MAXIMUS XII APEX (WI-FI)

ROG Maximus XII Apex is the premiere overclocking platform for extreme OC enthusiasts looking to unlock the full potential of the latest generation Intel Core processors. Its optimized layout, enhanced power delivery and control, and striking design with a myriad of customization options will appeal to overclockers, gamers, and PC builders alike.

PERFORMANCE

Push the performance envelope with hardware-level overclocking controls, intelligent power solution and enhanced memory support.

• Condensation Detection
  Specialized circuitry allows Maximus XII Apex to detect when condensation occurs on the back of the board. Divided into three distinct sections — CPU, DRAM and PCIe — the feature provides a useful warning when an area may be at risk of short-circuiting.
• Overclocker’s Toolkit
  An Overclocker’s Tookit with hardware-level controls will aid your overclocking experience. They’re quick and easy time-savers designed to help you break more records.
• High Quality Components
  Maximus XII Apex utilizes an intelligent VRM design fed by dual eight-pin auxiliary power connectors. Sixteen teamed power stages help eke out the last few MHz at the limits of the silicon.
• Dual 8-pin ProCool II power connectors
  Two ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
• 70 A power stage
  The VRM has 16 power stages, each rated to handle 70 amps.
• MicroFine alloy chokes
  Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
• 10K Japanese-made black metallic capacitors
  Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
• ASUS OptiMem III
  Boasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high frequency settings, or low latency settings. Stack Maximus XII Apex with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.

COOLING

A comprehensive cooling solution features carefully-designed heatsinks with the perfect balance of surface mass and air flow. With the addition of fan headers, the onboard cooling of Maximus XII Apex has more than enough capacity for specialization, maintaining system stability under any condition.

• VRM and I/O heatsink
  A high mass, finned heatsink is connected to the I/O cover via a heat pipe, providing an expansive surface area for efficient heat dissipation.
• Large‑diameter heatpipe
  The U-shaped design provides rapid and even heat transfer from the VRM to the extended VRM heatsink.
• Aluminum heatsink cover
  The heatsink cover is crafted from pure aluminum to efficiently cool the onboard M.2 drive.
• DIMM.2 heatsinks
  The ROG DIMM.2 module now passively cools M.2 drives with metal heatsinks that also keep your build looking clean.
• High-conductivity thermal pad
  The high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
• Extended VRM heatsink
  The extended heatsink increases thermal mass to deal with the additional heat generated by high power consumption.
• Chipset heatsink
  A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
• ROG Water-Cooling Zone
  Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
• Grow Your Gaming World
  Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
• Addressable Gen 2 RGB header
  The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Connectivity

Maximus XII Apex is well equipped to deliver supersmooth wireless connectivity and compatibility with multiple input sources and PCIe extensions, all of which are a must have for any setups.

• Three PCIe 3.0 M.2
  ROG Maximus XII Apex features three M.2 slots wired directly to the Z490 PCH. Two slots support both SATA and PCIe 3.0 x4 modes, and the other slot supports PCIe 3.0 x4 for NVMe. Additional Intel® Optane™ memory recognizes, remembers, and speeds up access to most frequently used files, applications, and games for faster, more responsive performance.
• ROG DIMM.2
  The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. Add a metal heatsink to handle the heat generated at maximum performance, while at the same time giving your build a bit of style.
  *DIMM.2 accommodates M.2 drives up to 22110 (110mm) in length
• WiFi 6 (AX201)
  Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences.
• Intel 2.5G Ethernet
  Onboard Intel 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
• SupremeFX
  Immerse yourself in sound with SupremeFX audio technology. This integrated audio solution utilizes the S1220A codec to provide a flat frequency response for a neutral, detailed sound signature.
• S1220A codec
  10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs
