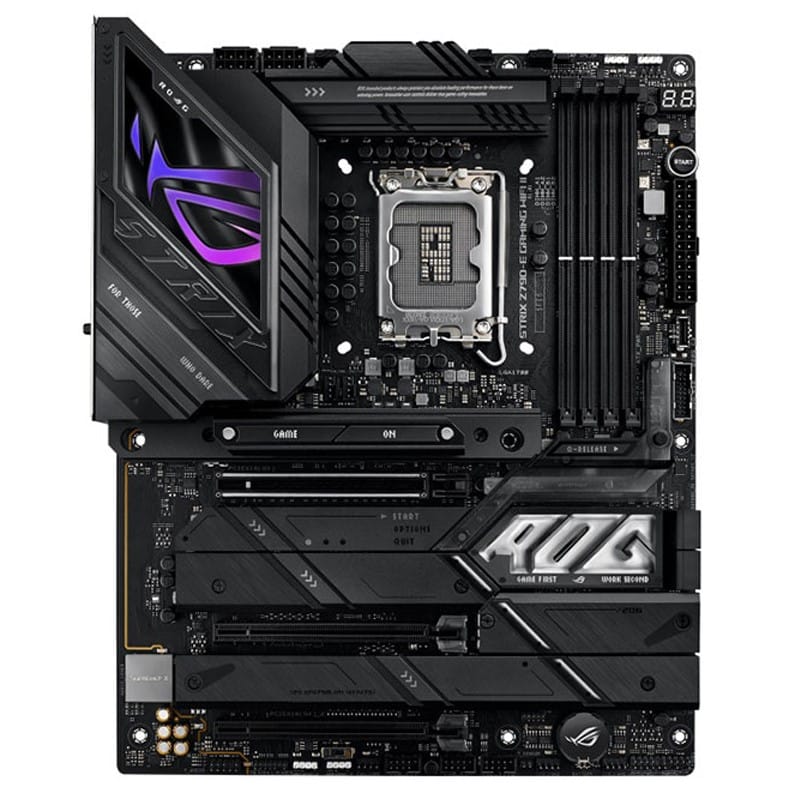

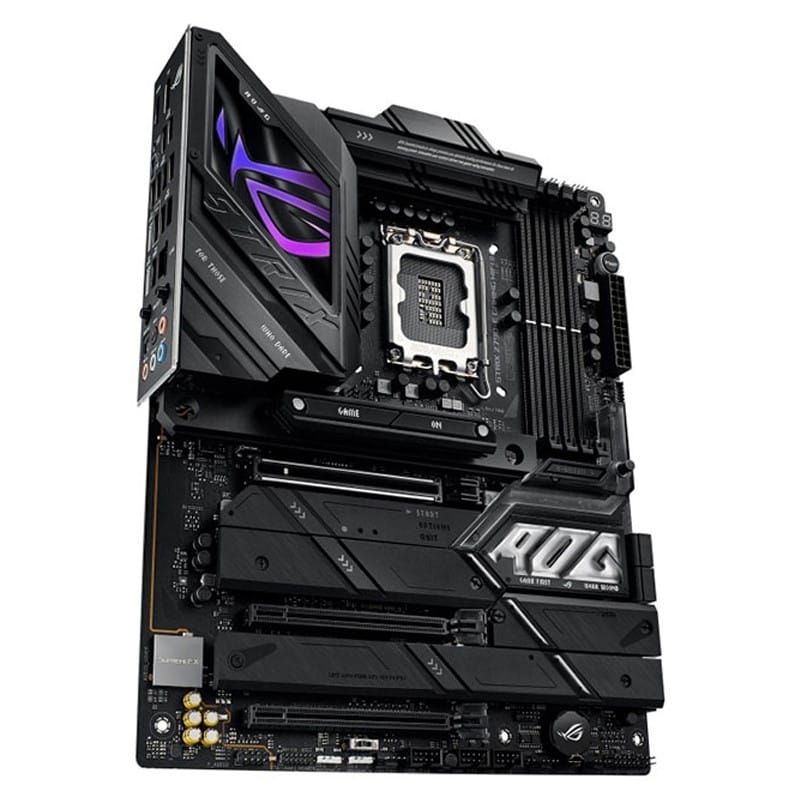

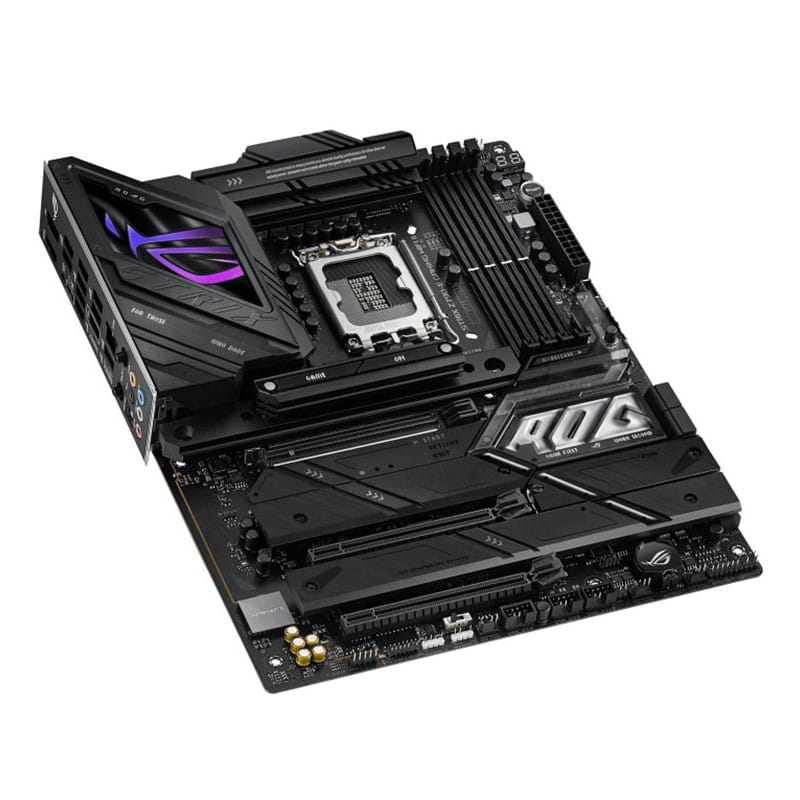

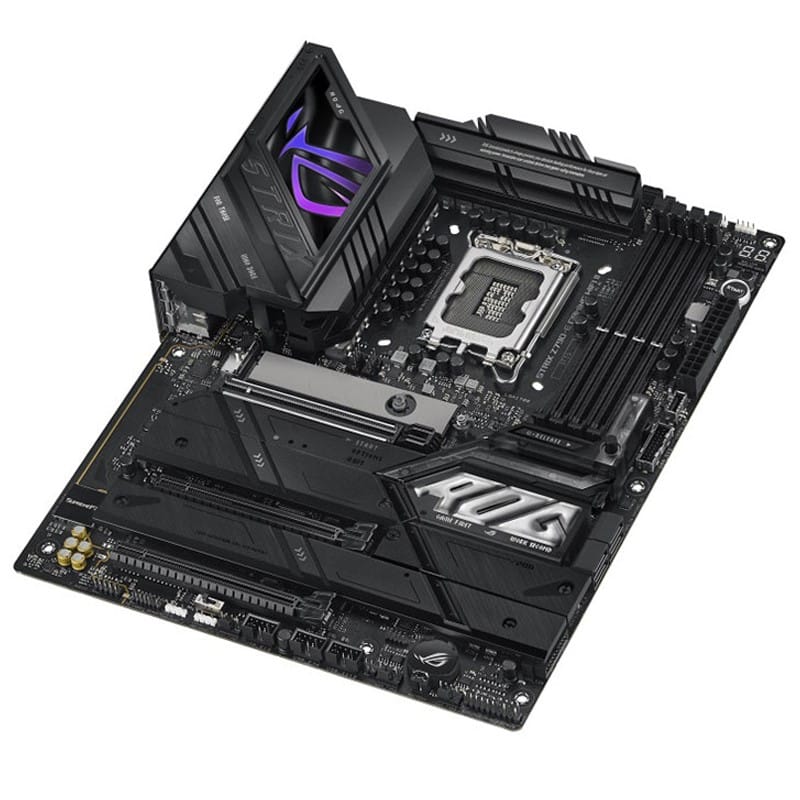

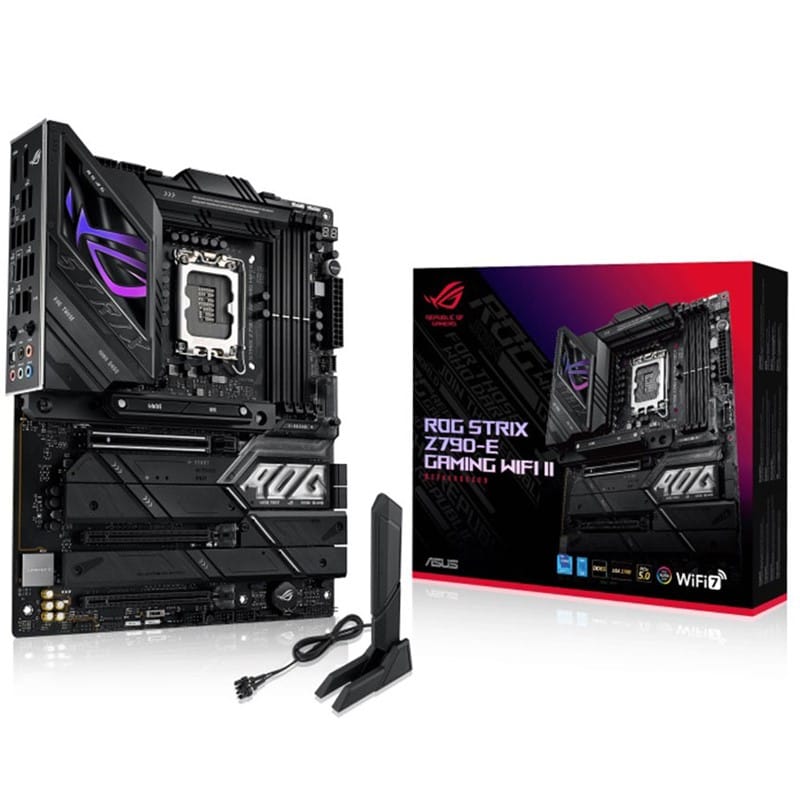

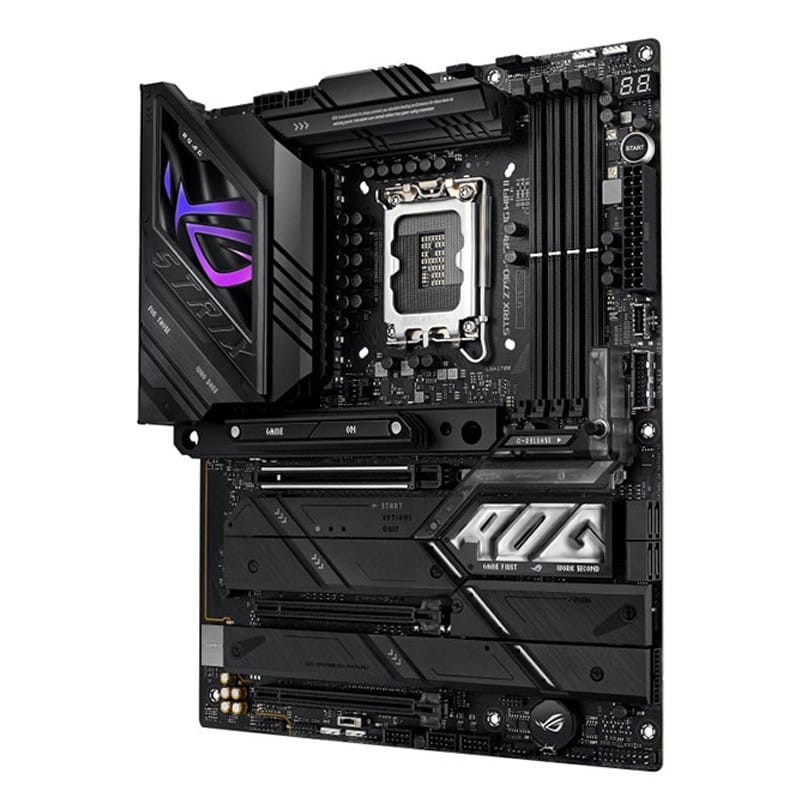

Name: Asus ROG STRIX Z790-E GAMING Wi-Fi II ATX Gaming Motherboard
SKU: 27302
Availability: InStock

Asus ROG STRIX Z790-E GAMING Wi-Fi II ATX Gaming Motherboard

متوفر

$ 572.22

Key Features

Product Type : Motherboard
Motherboard : Z790

Intel LGA 1700 Socket: Ready for Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Robust Power Solution: 18(110A) +1(110A) +2 power solution with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors.
Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and are connected with an L-shaped heatpipe
Next-Gen M.2 Support: PCIe 5.0 M.2 slot with Combo-Sink U-shaped Direct Contact heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks.
Abundant Connectivity: USB 20Gbps rear I/O port and front-panel connector with PD 3.0 up to 30W, eleven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
High-Performance Networking: On-board Intel WiFi 7 (802.11be) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance.
Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers.

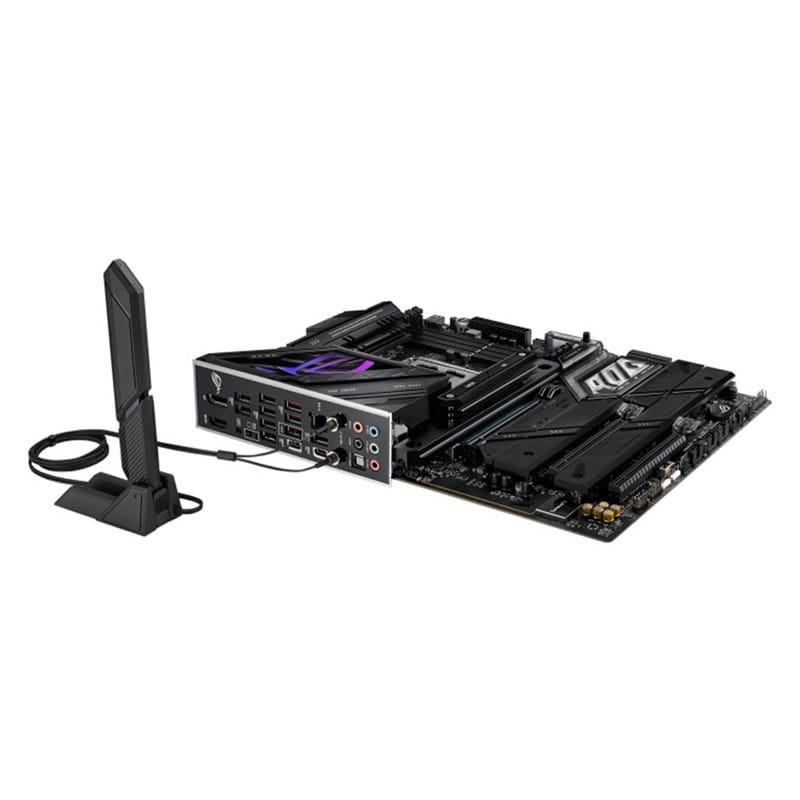

DIY Friendly Design: Q-Antenna, PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED with DRAM Detection, BIOS FlashBack button, BIOS FlashBack LED and Clear CMOS button l Renowned Software: Bundled with 9 months of Intel Unison, a 60-day AIDA64 Extreme trial subscription and the intuitive UEFI BIOS dashboard with integrated MemTest86.

اشتري الآن

تفاصيل المنتج

PRODUCT DETAILS

Asus ROG STRIX Z790-E GAMING Wi-Fi II ATX Gaming Motherboard

ROG STRIX Z790-E GAMING WIFI II

Intel® Z790 LGA 1700 ATX motherboard with 18+1+2 power stages, DDR5 slots, five M.2 slots with heatsinks, PCIe® 5.0 NVMe® SSD slot with M.2 Combo-Sink, PCIe 5.0 x16 SafeSlot with Q-Release, WiFi 7, USB 20Gbps rear I/O port and front-panel connector with PD 3.0 up to 30W, AI Overclocking, AI Cooling II and Aura Sync RGB lighting.

Specifications:

CPU Socket	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
Chipset	Intel® Z790
Memory	4 x DIMM slots, max. 192GB
Memory Support	DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Memory Architecture	Dual Channel Memory Architecture
Memory Features	Supports Intel® Extreme Memory Profile (XMP), DIMM Flex, OptiMem II, ASUS Enhanced Memory Profile II (AEMP II)
Graphics Outputs	1 x DisplayPort, 1 x HDMI™ port
Graphics Support	Graphics specifications may vary between CPU types. Refer to www.intel.com for updates.
Expansion Slots (CPU)	1 x PCIe 5.0 x16 slot (supports x16 mode)
Expansion Slots (Chipset)	2 x PCIe 4.0 x16 slots (support x4 mode)
PCIEX16(G5) Operation	When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
Storage	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
M.2 Slots (CPU)	M.2_1 (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2 Slots (Chipset)	M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Ethernet	1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth	Intel® Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Bluetooth® v5.4
USB Ports (Rear)	1 x USB 20Gbps port (1 x USB Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®)
USB Ports (Front)	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge), 2 x USB 5Gbps headers, 3 x USB 2.0 headers
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Features	Impedance sense, Jack-detection, Multi-streaming, 120 dB SNR stereo playback output, 110 dB SNR recording input, Supports up to 32-Bit/384 kHz playback on front panel

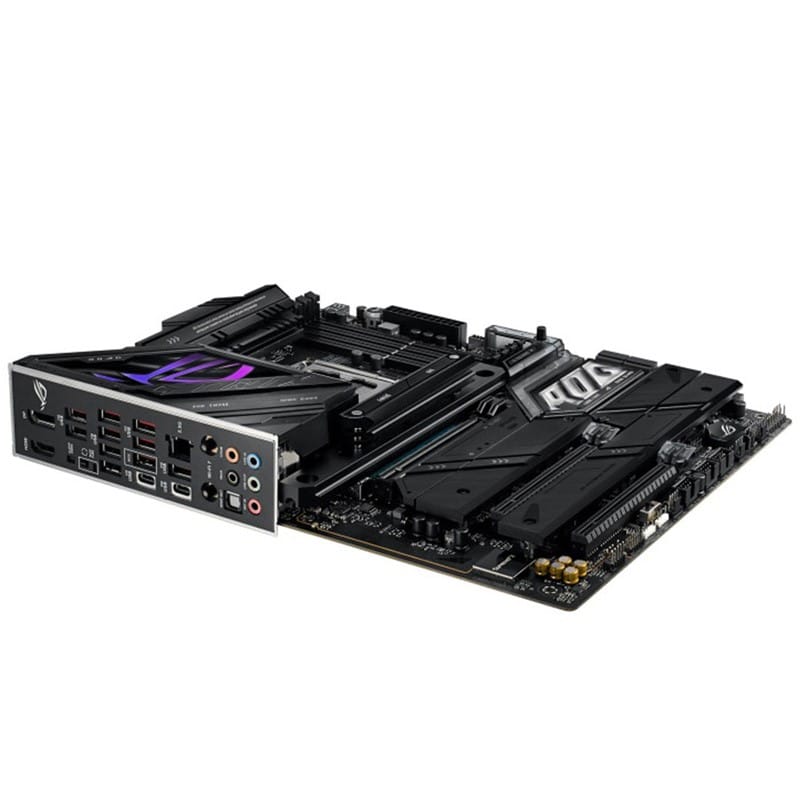

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
Internal I/O Connectors	Fan headers, Power connectors, M.2 slots, SATA ports, USB connectors, Addressable Gen 2 headers, Alternation PCIe Mode Switch, AURA RGB header, CPU over voltage jumper, Front panel audio header, Start button, System Panel header with Chassis intrude function, Thermal Sensor header, Thunderbolt™ (USB4®) header
Special Features	Extreme OC Kit (Start button), Extreme Engine Digi+ (5K Black Metallic Capacitors), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Code, Q-DIMM, Q-LED), ASUS Thermal Solution (M.2 heatsink backplate, M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack™ button, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM), AURA Sync (AURA RGB header, Addressable Gen 2 RGB headers), Front Panel USB 20Gbps with PD Fast Charge Support (Up to 30W fast charging and USB Wattage Watcher)
Software Features	ROG Exclusive Software (ROG CPU-Z, DTS® Sound Unbound), ASUS Exclusive Software (Armoury Crate, AIDA64 Extreme, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving, Sonic Studio, Two-Way AI Noise Cancellation), AI Suite 3 (Easy Optimization with AI Overclocking, TPU, DIGI+ VRM, Turbo app, PC Cleaner), MyAsus, USB Wattage Watcher, Intel® Unison™, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS	AI Overclocking Guide, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, FlexKey, MemTest86)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

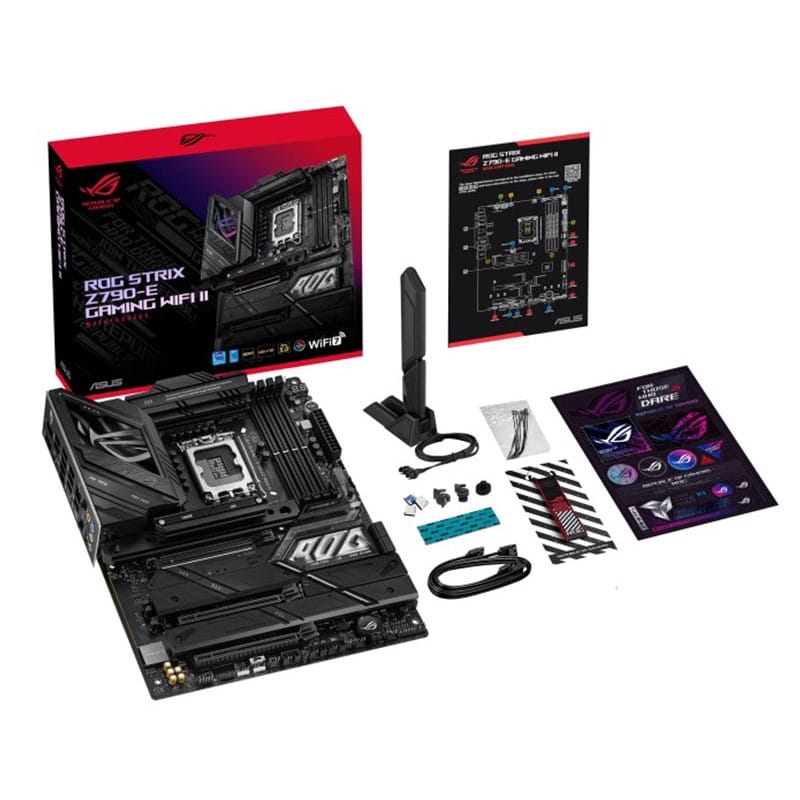

Accessories	Cables (2 x SATA 6Gb/s cables), Additional Cooling Kit (1 x Thermal pad for M.2), Miscellaneous (1 x ASUS Wi-Fi Q-Antenna, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 2 x M.2 Rubber Packages, 1 x M.2 backplate Rubber Package)
Documentation	1 x Quick start guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX Form Factor (12 inch x 9.6 inch)

Asus ROG STRIX Z790-E GAMING Wi-Fi II ATX Gaming Motherboard

تفاصيل المنتج

PRODUCT DETAILS

Asus ROG STRIX Z790-E GAMING Wi-Fi II ATX Gaming Motherboard

ROG STRIX Z790-E GAMING WIFI II

Specifications:

CPU Socket

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors

Chipset

Intel® Z790

Memory

4 x DIMM slots, max. 192GB

Memory Support

DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory

Memory Architecture

Dual Channel Memory Architecture

Memory Features

Supports Intel® Extreme Memory Profile (XMP), DIMM Flex, OptiMem II, ASUS Enhanced Memory Profile II (AEMP II)

Graphics Outputs

1 x DisplayPort, 1 x HDMI™ port

Graphics Support

Graphics specifications may vary between CPU types. Refer to www.intel.com for updates.

Expansion Slots (CPU)

1 x PCIe 5.0 x16 slot (supports x16 mode)

Expansion Slots (Chipset)

2 x PCIe 4.0 x16 slots (support x4 mode)

PCIEX16(G5) Operation

When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.

Storage

Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

M.2 Slots (CPU)

M.2_1 (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2 Slots (Chipset)

M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Ethernet

1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

Intel® Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Bluetooth® v5.4

USB Ports (Rear)

1 x USB 20Gbps port (1 x USB Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®)

USB Ports (Front)

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge), 2 x USB 5Gbps headers, 3 x USB 2.0 headers

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Audio Features

Impedance sense, Jack-detection, Multi-streaming, 120 dB SNR stereo playback output, 110 dB SNR recording input, Supports up to 32-Bit/384 kHz playback on front panel

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Internal I/O Connectors

Special Features

Software Features

UEFI BIOS

AI Overclocking Guide, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, FlexKey, MemTest86)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Documentation

1 x Quick start guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor (12 inch x 9.6 inch)
